Hár-framleiðsla á sjálfvirkri eldhúspappírshandklæðaframleiðsluvél
Lýsing á búnaði:

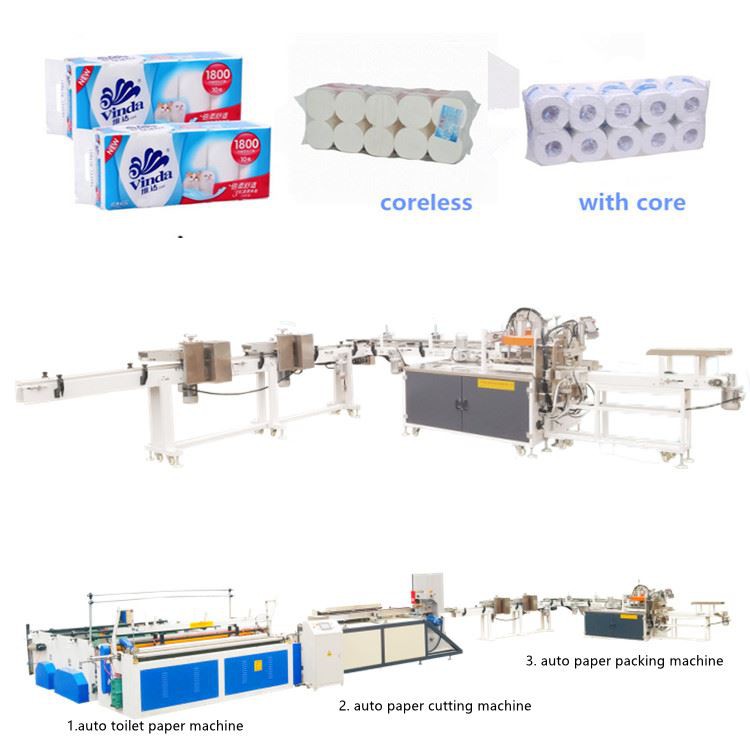

Automatic High Speed kitchen paper towel making machine is for toilet paper roll/maxi roll processing and kitchen paper roll production . Machine have core feeding unit, can produce products both with and without core. Raw material from jumbo roll ,after full embossing or edge embossing, color gluing, dot-dot lamination, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become a full automatic kithcne towel paper production line. The kitchen paper towel making machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Fyrirmynd |
1575 Alveg sjálfvirk eldhúspappírshandklæðagerðarvél |
Jumbo Roll Max Width | 1800mm (hægt að tilgreina aðra stærð) |
Jumbo rúlla þvermál | Φ1500mm(Other size can be specified) |
Jumbo rúlla innri þvermál | 3 tommur (76,2 mm) (hægt að tilgreina aðra stærð) |
Götunarfjarlægð | 4anvil Blades（90-110mm）(Other size can be specified) |
Þvermál fullunnar vöru | Φ80φ140mm |
Kjarnaþvermál fullunnar vöru | φ38φ55mm |
Framleiðsluhraði | 100250m/mín |
Forrita stjórnandi | PLC(Delta) |
Slakaðu á Standum | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa （ Provide by user） |
Aðalafl | 7,5KW |
Stærð | 580019001920(LWH) |
Þyngd | Um 5,5T (Allar vélar 40mm veggplötur) |
Jumbo Roll Layers | 13 lög, 1430gsm |
Edge-Línuupphleypt (getur verið tilgreint) | Stál í stál (loftstýring) |
Upphleypt (hægt að tilgreina) | Rúllur með stórum þvermál, stál í gúmmí, tvöföld sett |
Spenna | 380V 50HZ (hægt að tilgreina) |
maq per Qat: eldhúspappírshandklæðagerðarvél, birgjar, framleiðendur, verksmiðja, verð, til sölu
